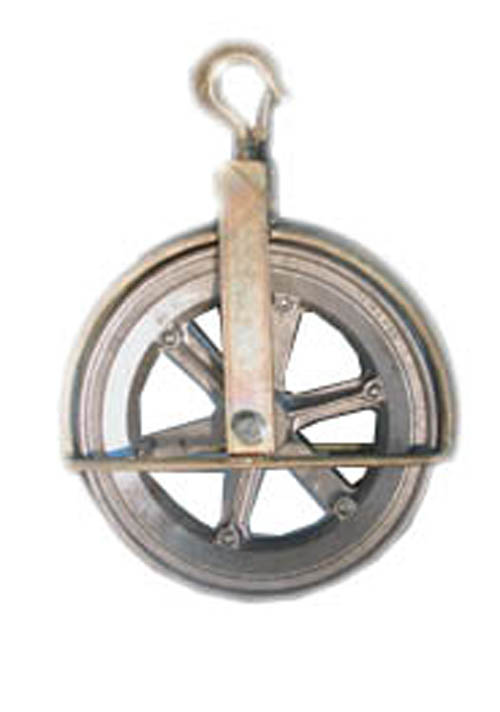

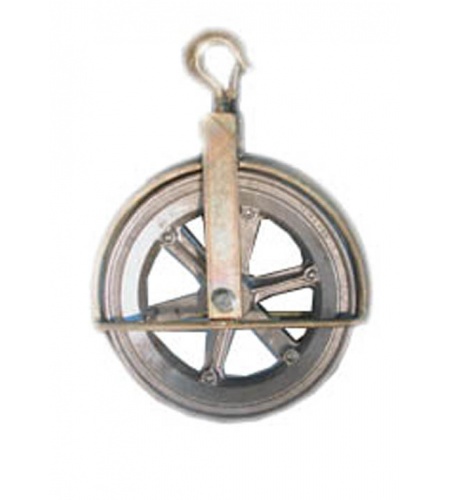

Single pulley block ideal for the running out of conductors (ABC included) and the tensioning of conductors. The moulded aluminium alloy sheave, with interchangeable nylon protection sleeves, is mounted on ball race suspension for smooth running. Swivel hook attachment is standard.
| Part No. |
Sheave Outer Diameter |
Sheave Inner Diameter |
Sheave Width |
Safe Working Load |
Weight |
| CLY 681 025/1 |
300mm |
230mm |
38mm |
1200kg |
6.5kg |
| CLY 681 025/2 |
440mm |
350mm |
48mm |
1500kg |
9.7kg |
| CLY 681 025/3 |
770mm |
650mm |
68mm |
2000kg |
28.5kg |
| CLY 681 025/4 |
920mm |
800mm |
68mm |
2000kg |
34.0kg |
