Manufactured from the same blend of prime EPDM known as Salcor® as our Blankets and line hose, Insulated Covers are used to shroud all sorts of overhead apparatus from pin insulators to HV Fuses.

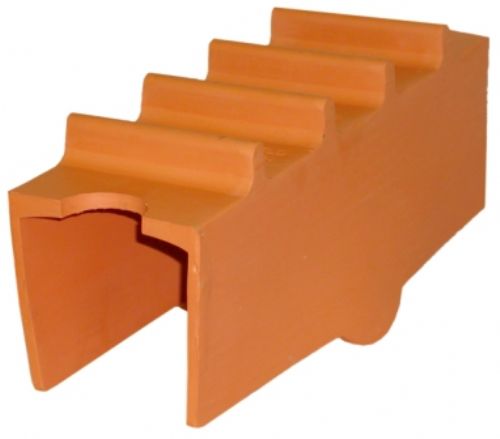

X-Arm Covers reduce electrical stresses on line hose and / or jumpers. X Arm Covers have interior ribs to minimise movement when in situ on the crossarm.
| Part No. |
X-Arm Size |
Voltage Class |
Overall Size |
Weight |
| CLY 558 145 |
Up to 102 x 114mm |
2 |
368 x 117 x 105mm |
1.4kg |
| CLY 558 1186 |
Up to 140 x 152mm |
4 |
432 x 152 x 140mm |
2.3kg |
