Double Eye, Double Weave, General Duty Stockings CLY 000 206

/ uploads/pullingandliftingequipment/cly000206


Call: +44 (0) 1234 855 855 to order

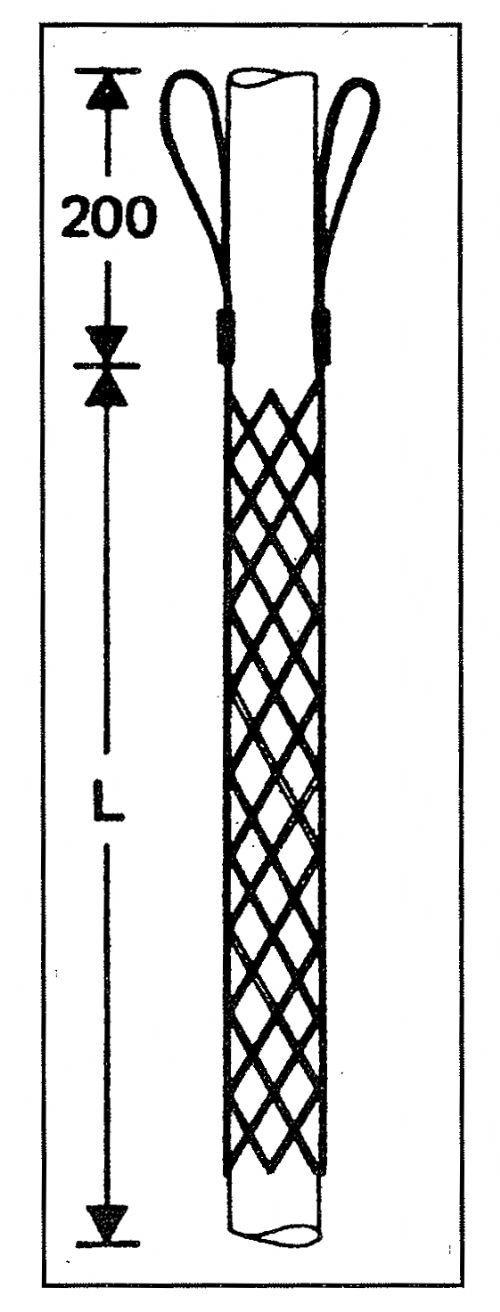

These general duty stockings are made from high tensile galvanised steel wire and are available in two lengths: 600 or 900mm.

Part No. Length Cable Diameter MBL Weight
CLY 000 206/10
CLY 000 209/10		 600mm
900mm		 10-20mm 1860kg 0.25kg
0.40kg
CLY 000 206/20
CLY 000 209/20		 600mm
900mm		 20-30mm 2256kg 0.27kg
0.42kg
CLY 000 206/30
CLY 000 209/30		 600mm
900mm		 30-40mm 3696kg 0.41kg
0.58kg
CLY 000 206/40
CLY 000 209/40		 600mm
900mm		 40-50mm 5490kg 0.60kg
0.76kg
CLY 000 206/50
CLY 000 209/50		 600mm
900mm		 50-65mm 5490kg 0.65kg
0.84kg
CLY 000 206/65
CLY 000 209/65		 600mm
900mm		 65-80mm 7320kg 0.83kg
1.15kg
CLY 000 206/80
CLY 000 209/80		 600mm
900mm		 80-95mm 7320kg 0.85kg
1.23kg
CLY 000 206/95
CLY 000 209/95		 600mm
900mm		 95-110mm 10613kg 1.40kg
2.30kg
CLY 000 206/110
CLY 000 209/110		 600mm
900mm		 110-130mm 10613kg 1.40kg
2.30kg
