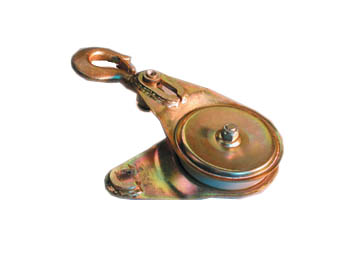

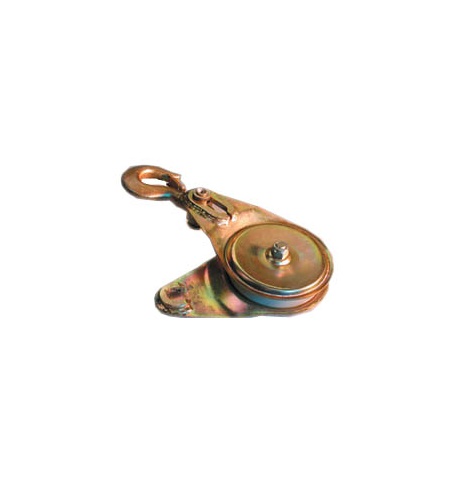

Made from high quality steel these blocks open from the side allowing easy access for the rope. Simple locking / unlocking of this side movement allows quick erection. Swivel hook attachment is standard. Available with nylon or steel sheave.
| Part No. |
Sheave Material |
Max Rope Diameter |
Total Length |
Sheave Diameter |
SWL |
Weight |
| CLY 681 020/0.5N |
Nylon |
18mm |
305mm |
120mm |
500kg |
1.6kg |
| CLY 681 020/1.0N |
Nylon |
18mm |
315mm |
120mm |
1000kg |
1.7kg |
| CLY 681 020/1.5N |
Nylon |
20mm |
330mm |
120mm |
1500kg |
2.0kg |
| CLY 681 020/1.5S |
Steel |
20mm |
340mm |
120mm |
1500kg |
3.4kg |
| CLY 681 020/2S |
Steel |
25mm |
410mm |
150mm |
2000kg |
6.6kg |
| CLY 681 020/3S |
Steel |
25mm |
440mm |
150mm |
3000kg |
7.2kg |
| CLY 681 020/5S |
Steel |
30mm |
510mm |
200mm |
5000kg |
13.0kg |
