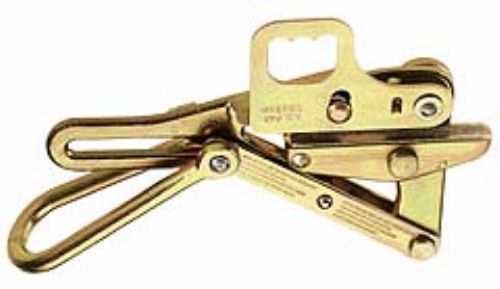

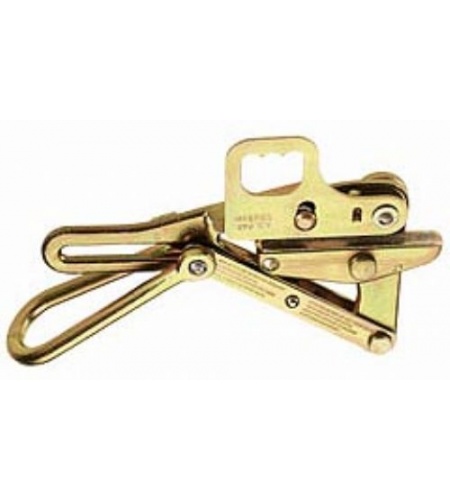

Hot-Line Grips for both bare and insulated conductors. Grip may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire. Standard hot-line grips are not supplied with springs or lock-open features. When these features are desired, add prefix letter 'S' before part number (example: S1684-5H).
| Part No. |
Min Cable Diameter |
Max Cable Diameter |
SWL |
Weight |
Jaw Length |
| CLY 920 1613-40H |
3.05mm |
9.4mm |
900kg |
1.48kg |
10.2cm |
| CLY 920 1684-5H |
5.54mm |
13.97mm |
1600kg |
2.84kg |
12.7cm |
| CLY 920 1656-20H |
5.08mm |
10.16mm |
900kg |
1.48kg |
10.2cm |
| CLY 920 1656-30H |
7.87mm |
13.46mm |
900kg |
1.82kg |
12.1cm |
| CLY 920 1656-40H |
13.46mm |
18.80mm |
1600kg |
3.52kg |
14.0cm |
| CLY 920 1656-50H |
18.80mm |
21.84mm |
1600kg |
3.52kg |
14.0cm |
| CLY 920 1656-60H |
21.84mm |
24.84mm |
1600kg |
3.41kg |
14.0cm |
