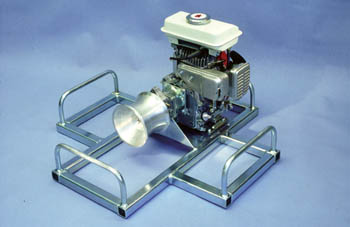

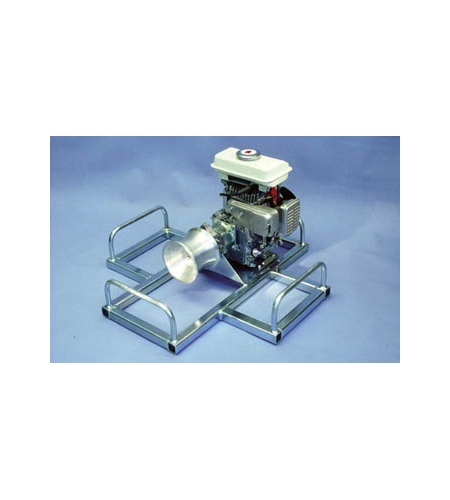

The Mini Winch is used for running pilot ropes or small cables through a duct. The winch slots into a manhole opening and the rope is pulled with the assistance of the capstan wheel. The engine is a reliable 4 stroke, 2HP Honda, and the winch is light enough for one man to carry
Pulling Force |
150kg |
Max Speed |
50m/min |
Size |
640 x 640 x 370mm |
Weight |
21kg |
Capstan Diameter |
100mm |
