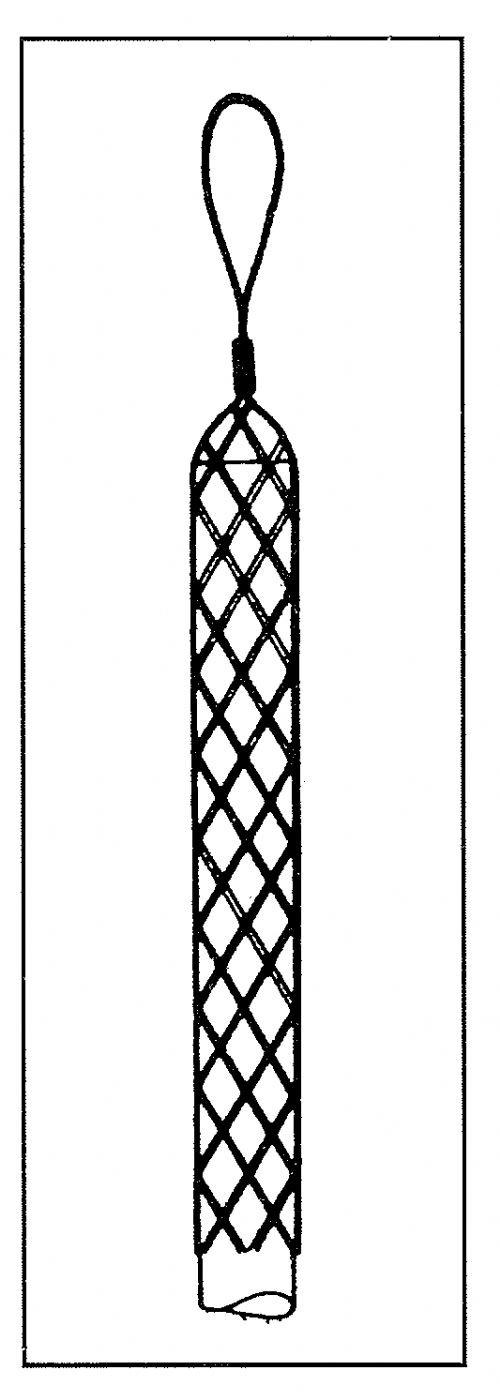

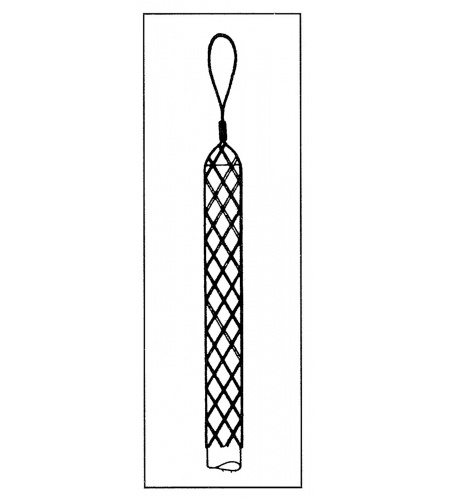

Non Conductive (ABC) Stockings CLY 000 P1106/10

Cable Diameter	Please select 10-20 mm 20-30 mm 30-40 mm 40-50 mm 50-65 mm 65-80 mm
Eye	Please select Single Double

Call: +44 (0) 1234 855 855 to order

Ideal for use in ABC applications, these stockings are manufactured from non conductive, high tensile synthetic material. Available in single weave or double weave with single eye or double eye.

Cable Diameter	Single Weave (min break load)	Double Weave (min break load)	Weight (kg)	ABC Size Applicable
10 - 20mm	1120kg	2240kg	0.1	-
20 - 30mm	1680kg	3360kg	0.1	2 x 35/50 4 x 35/50
30 - 40mm	2688kg	4480kg	0.1	2 x 70/95 4 x 70/95
40 - 50mm	2688kg	5376kg	0.2	4 x 120
50 - 65mm	2688kg	7168kg	0.2	-
65 - 80mm	3584kg	7168kg	0.2	-
80 - 100mm	3584kg	7168kg	0.3	-

^{* All stockings are available as a single or double eye}
