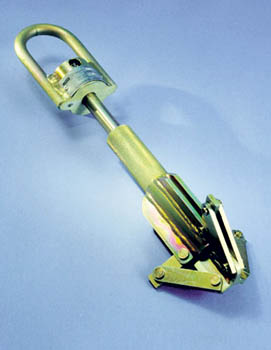

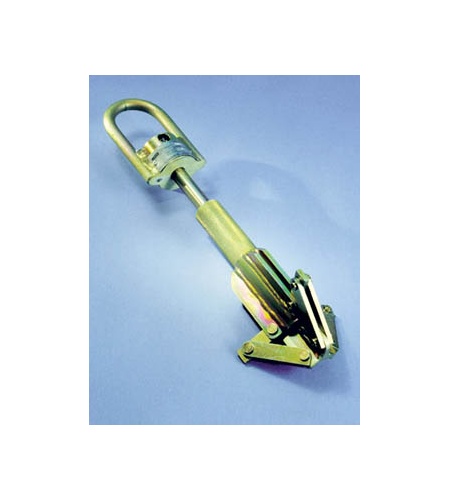

Simply insert the cable drum lifting unit into the centre hole of the drum and the retractable arms will grip the inner skirt of the drum. The inner components are mounted on bearings to allow smooth rotation of the drum.
| Part No. |
SWL |
Standard Drum Hole Diameter |
Weight |
| CLY 640 930 2930 |
1200kg |
75mm (will also suit 85mm) |
3.5kg |
| CLY 640 930 2945 |
2200kg |
110mm |
8kg |
| CLY 640 930 2950 |
4000kg |
130mm |
20kg |
* A small amount of oversize can be accomodated for non-standard drum hole sizes, please contact us for details.
