Predominantly used to cover / shroud live or energised conductors or equipment, Clydesdale only supplies Rubber Insulating Blankets manufactured by WH Salisbury the world's leading manufacturer. As such you are guaranteed that Clydesdale Blankets will hold their colour and flexibility, and will maintain physical properties and dielectric strength in the field longer than any other blanket on the market. The Orange Salcor is manufactured from a well researched blend of prime EPDM, which is naturally resistant to Ozone. Salcor offers superb flexibility; similar to that of Type I natural rubber.

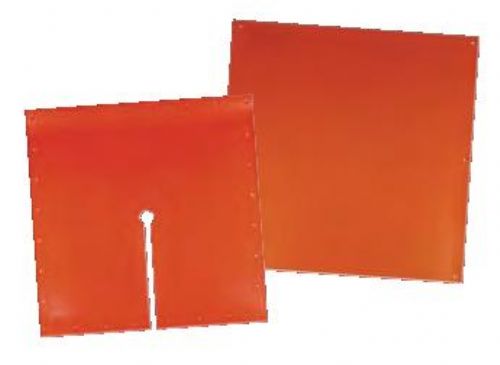

Solid Style Insulating Blankets are designed to be easily secured in place by using blanket pins or snap buttons. Solid blankets are flexible and feature a reinforced beaded edge and eyelets for added strength and tear resistance.
Slotted Style Insulating Blankets are designed for increased versatility and flexibility in special cover-up situations. Used for covering cross arms with insulators or any place where a wire, pin or projection interferes with proper placement of other cover-up devices.
| Part No. |
Eyelets |
Voltage Class |
Size |
Weight |
| Solid Style |
| CLY 13 |
25 |
4 |
22" x 22" (559 x 559mm) |
1.4kg |
| CLY 1000-E |
6 |
4 |
27" x 36" (686 x 914mm) |
2.3kg |
| CLY 900-E |
6 |
4 |
26" x 36" (914 x 914mm) |
5.4kg |
| CLY 559 1450 |
Gel / Hand Cleaner |
4.5oz Tube |
46" x 46" (1168 x 1168mm) |
0.2kg |
| Slotted Style |
| CLY 15 |
28 |
4 |
22" x 22" (559 x 559mm) |
1.1kg |
| CLY 1300 |
28 |
4 |
36" x 36" (914 x 914mm) |
3.2kg |
| CLY 1800-E |
10 |
4 |
46" x 46" (1168 x 1168mm) |
5.0kg |
Click here for a more detailed data sheet.
