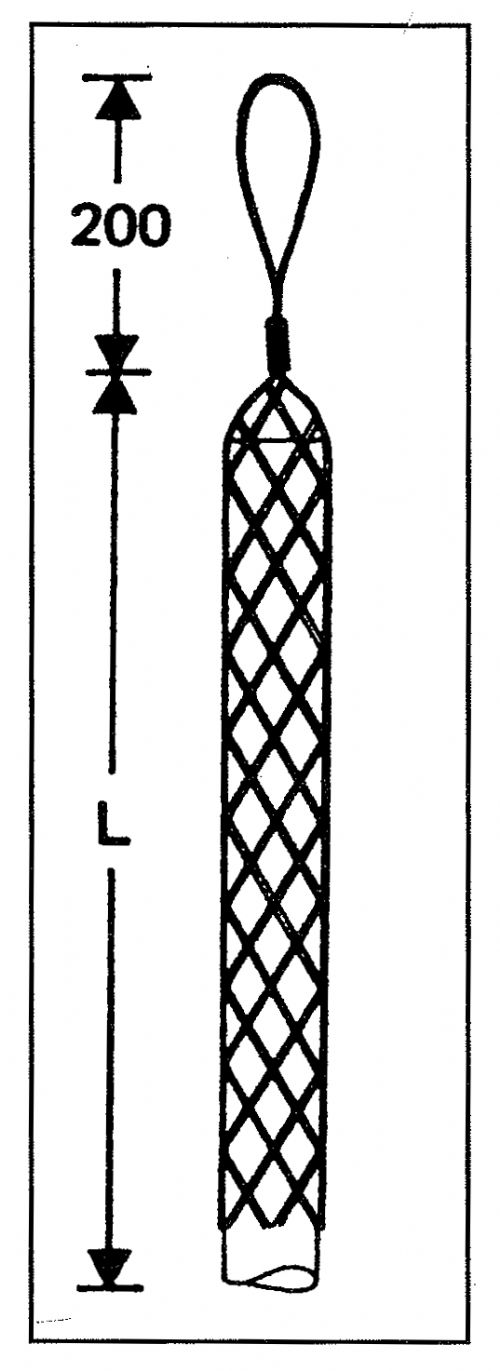

These general duty stockings are made from high tensile galvanised steel wire and are available in two lengths: 600 or 900mm.
| Part No. |
Length |
Cable Diameter |
MBL |
Weight |
CLY 000 106/06
CLY 000 109/06 |
600mm
900mm |
6-10mm |
1504kg |
0.12kg
0.32kg |
CLY 000 106/08
CLY 000 109/08 |
600mm
900mm |
8-16mm |
1504kg |
0.12kg
0.32kg |
CLY 000 106/10
CLY 000 109/10 |
600mm
900mm |
10-20mm |
1860kg |
0.7kg
0.38kg |
CLY 000 106/20
CLY 000 109/20 |
600mm
900mm |
20-30mm |
2256kg |
0.20kg
0.47kg |
CLY 000 106/30
CLY 000 109/30 |
600mm
900mm |
30-40mm |
3696kg |
0.29kg
0.52kg |
CLY 000 106/40
CLY 000 109/40 |
600mm
900mm |
40-50mm |
5490kg |
0.63kg
0.95kg |
CLY 000 106/50
CLY 000 109/50 |
600mm
900mm |
50-65mm |
5490kg |
0.65kg
0.94kg |
CLY 000 106/65
CLY 000 109/65 |
600mm
900mm |
65-80mm |
7320kg |
0.83kg
1.20kg |
CLY 000 106/80
CLY 000 109/80 |
600mm
900mm |
80-95mm |
7320kg |
0.91kg
1.31kg |
CLY 000 106/95
CLY 000 109/95 |
600mm
900mm |
95-110mm |
10613kg |
1.30kg
2.10kg |
CLY 000 106/110
CLY 000 109/110 |
600mm
900mm |
110-130mm |
10613kg |
1.30kg
2.10kg |
CLY 000 106/130
CLY 000 109/130 |
600mm
900mm |
130-150mm |
10613kg |
1.40kg
2.50kg |
CLY 000 106/150
CLY 000 109/150 |
600mm
900mm |
150-180mm |
12736kg |
1.45kg
2.50kg |
