The Reliaguard Wildlife Hot Stick Disc is a barrier used to isolate
climbing animals thus preventing them from making a phase
to ground contact. Wildlife Hot Stick Discs are typically used on
poles and substations. These guards protect tree frogs, squirrels,
raccoons, snakes, other wildlife from contact with energized
risk points. The contact risk points are typically from a phase to
ground contact.
FEATURES
• Simple, one-step energized installation or removal
• No assembly required, reusable
• Easily field trimmed to suit a wide range of insulator/
bushing diameters

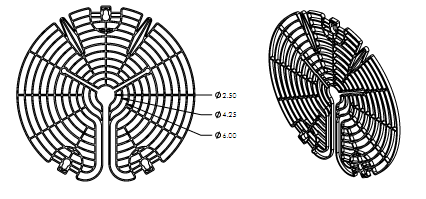

Product Name |
Part Number |
Outside Diameter |
Inside Diameter |
Width |
Wildlife Hot Stick Disc -24 |
PD-0624 |
24 (609.6) |
2.5-6.0 (63.5-152.4) |
0.5 (12.7) |
Wildlife Hot Stick Disc -20 |
PD-0620 |
20 (508) |
2.5-6.0 (63.5-152.4) |
0.5 (12.7) |
Wildlife Hot Stick Disc -16 |
PD-0616 |
16 (406.4) |
2.5-6.0 (63.5-152.4) |
0.5 (12.7) |
*Dimensions in Inches(mm)
