Reliaguard Protection Disk is a barrier used to isolate climing
animals thus preventing them from making a phase to ground
contact. Protection disks are typically used on poles. Protection
Disc Guards protect tree frogs, squirrels, raccoons, snakes, other
wildlife from contact with energized risk points. The contact risk
points are typically from a phase to ground contact.
FEATURES
• Reliaguard® Protection Discs are designed to stay in
place. Retention of the cover once applied is a critical
design feature to be considered.
• Protection discs are a 2-piece adjustable size product
• Easy to install, the Protection Disc is supplied with
push through pins to secure the disc for the required
diameter of the center opening
• Fits a wide range of insulators

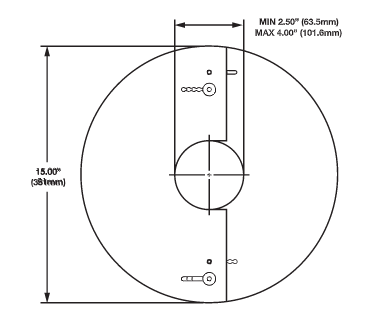

| Product Name |
Part Number |
Outside Diameter |
Inside Diameter |
Width |
| Protection Disc - 4” ID Max - 15” OD - Flat |
PD-0415F |
16 (406.4) |
2.5-4.0 (63.5-101.6) |
0.125 (3.2) |
| Protection Disc - 5” ID Max - 22” OD - Flat |
PD-0522F |
22 (558.8) |
2.5-5.0 (63.5-127) |
0.125 (3.2) |
*Dimensions in Inches(mm)
