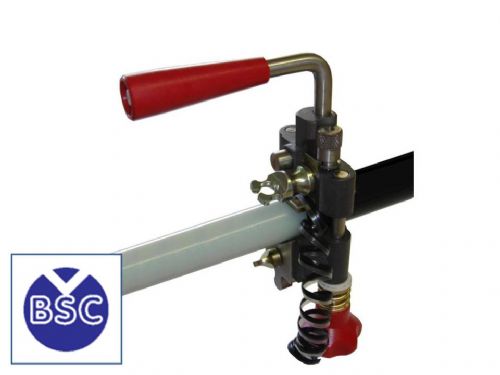

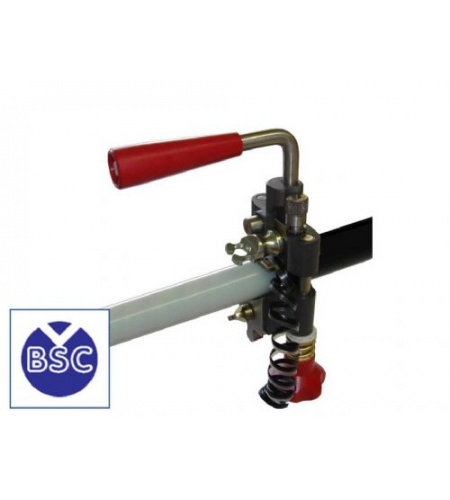

The BSC tools remove the Bonded Semi-Conductor leaving a preset length of exposed Bonded Semi-Conductor. The adjustable blade allows controlled cut depths of 0.4mm to 1.4mm and also chamfers the Semi-Conductor quickly and efficiently as it cuts in a helicoidal manner to leave a perfect surface for efficient cable jointing.
The BSC 144425 tool has been specifically designed for the UK market and incorporates a larger diameter range, deeper cut depth from 0.4mm to 1.5mm and a remaining Bonded Semi-Conductor length of either a preset 25mm or variable up to 40mm.
Part No. |
Semi-Con Diameter |
Remaining Length |
Weight |
CLY 370 BSC 144025 |
14-40mm |
25mm |
620g |
CLY 370BSC 1440D1 |
14-40mm |
30/40mmmm |
620g |
CLY 370BSC 144425 |
14-44mm |
25mm |
620g |
CLY 370BSC 386025 |
38-60mm |
25mm |
800g |
CLY 370 BSC 3860D1 |
38-60mm |
20/40mm |
800g |
