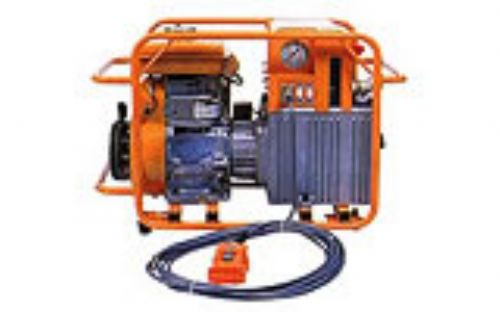

Engine Driven Hydraulic Pump CLY 936 HPE3

/ uploads/specialistinstallationtools/hpe3


Call: +44 (0) 1234 855 855 to order

The HPE-3 is a double acting engine driven hydraulic pump suitable for double acting presses for transmission line use. This pump is one of the most sophisticated on today's market. It builds up pressure to 700 bar automatically and returns engine RPM to an idle. The push button will control fluid flow at the discretion of the operator. There is also a manual mode on the pump that can be used to overide the remote control. Electric ciruit boards are completely modulated for easy replacement and repair.

Dimensions 650 x 500 x 73mm
Weight 55kg
Oil Delivery/Stroke 7.5l/min @ 0-20bar
1.2l/min @ 20-700bar
Reservoir Capacity 10,000cc
Engine FUJI HEAVY Air Cooled, 4 stroke petrol engine, 2.7ps/³, 600rpm
