Insulated Allen Key / Hex Key - 90deg Bent Head CLY 360 D62CC 2

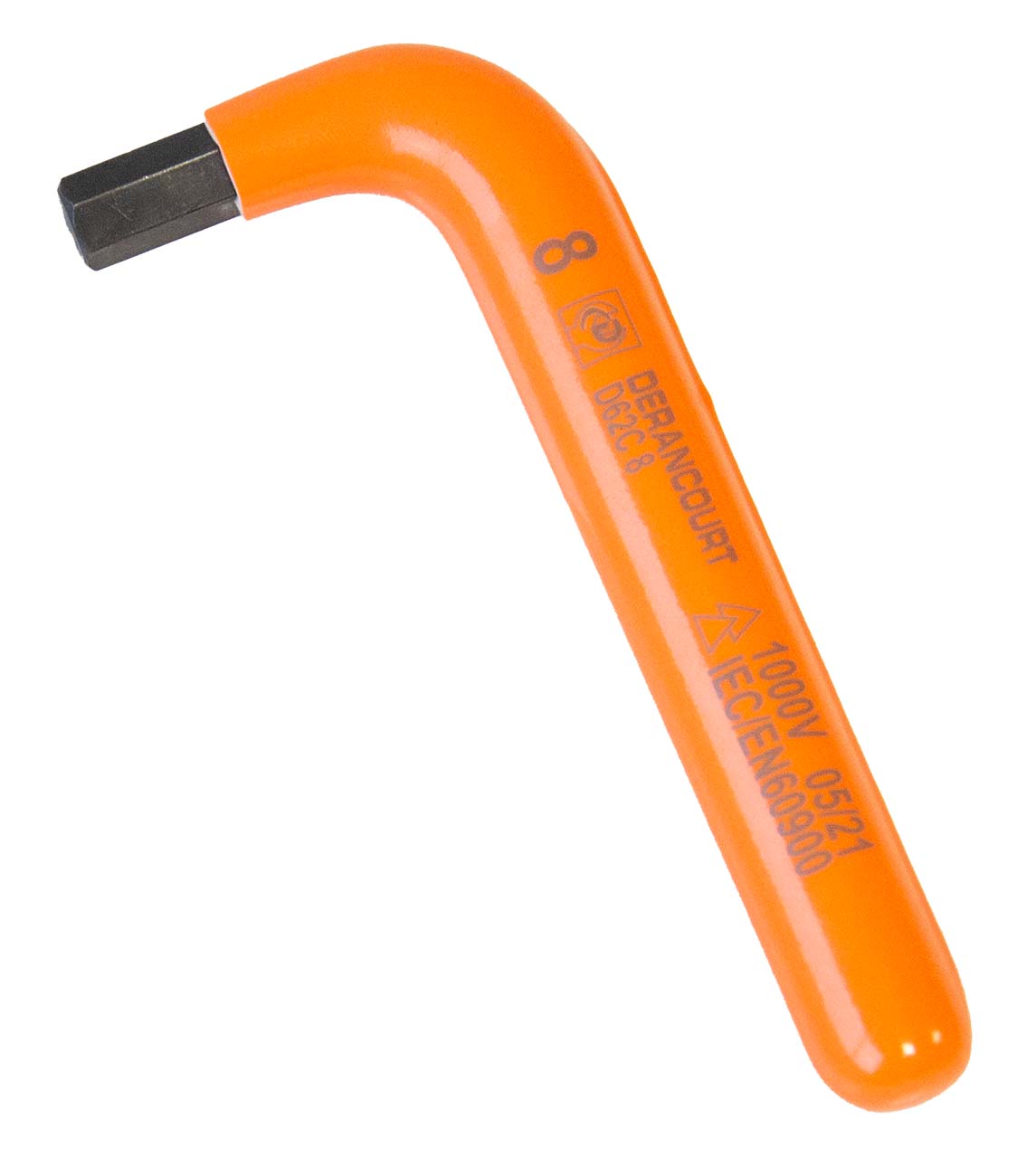

Insulated Allen Key / Hex Key - 90deg Bent Head

Allen Key Size

Call: +44 (0) 1234 855 855 to order

The blades of the entire range of allen keys are forged from chrome vanadium steel which has undergone a high frequency heat treatment in order to achieve a hardness of between 160 and 180kg/mm². The quality of this steel allows a reduction in the thickness of the resulting key, meaning that after the insulation process the Clydesdale range of keys is comparable in thickness to other non insulated keys of the same usable size. The tightening torques achieved by Clydesdale keys are greater by approx. 60% than those specified by the nut and bolt industries by their standards worldwide.

Metric Sizes

Part No. Size Handle Length Short Arm Length Weight
CLY 360 D62C 1.5 1.5mm 50mm 16mm 3g
CLY 360 D62C 2 2mm 50mm 16mm 4g
CLY 360 D62C 2.5 2.5mm 50mm 16mm 5g
CLY 360 D62C 3 3mm 63mm 20mm 10g
CLY 360 D62C 4 4mm 70mm 25mm 16g
CLY 360 D62C 5 5mm 80mm 28mm 26g
CLY 360 D62C 6 6mm 90mm 32mm 40g
CLY 360 D62C 7 7mm 95mm 34mm 53g
CLY 360 D62C 8 8mm 100mm 36mm 71g
CLY 360 D62C 9 9mm 105mm 38mm 97g
CLY 360 D62C 10 10mm 112mm 40mm 125g
CLY 360 D62C 11 11mm 118mm 42mm 156g
CLY 360 D62C 12 12mm 125mm 45mm 234g
CLY 360 D62C 14 14mm 140mm 56mm 301g

Get in touch with Clydesdale for more information
