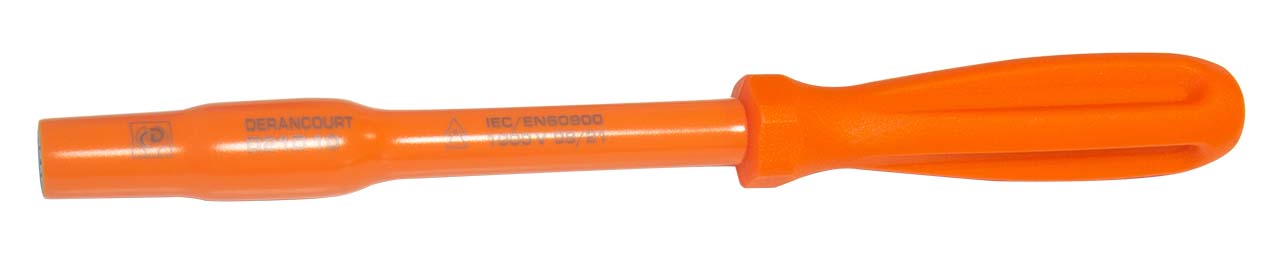

Insulated Nut Spinner (Metric) CLY 360 D21 4

Dimensions

4mm 6mm 7mm 8mm 9mm 10mm 11mm 12mm 13mm 14mm 17mm

Call: +44 (0) 1234 855 855 to order

The blade is forged from tubular heat treated chrome vanadium steel. Specially designed for screwing and unscrewing the most inaccessible nuts.

L = length of hex tube (excluding handle).

Part No	Designation	Dimension	Weight
CLY 360 D21 4	4mm	130mm	45g
CLY 360 D21 5	5mm	130mm	70g
CLY 360 D21 6	6mm	130mm	90g
CLY 360 D21 7	7mm	180mm	125g
CLY 360 D21 8	8mm	180mm	135g
CLY 360 D21 9	9mm	180mm	170g
CLY 360 D21 10	10mm	180mm	195g
CLY 360 D21 11	11mm	180mm	235g
CLY 360 D21 12	12mm	180mm	250g
CLY 360 D21 13	13mm	180mm	270g
CLY 360 D21 14	14mm	180mm	305g
CLY 360 D21 15	15mm	180mm	320g
CLY 360 D21 16	16mm	180mm	350g
CLY 360 D21 17	17mm	180mm	370g
CLY 360 D21 18	18mm	180mm	380g
CLY 360 D21 19	19mm	180mm	400g
CLY 360 D21 20	20mm	180mm	420g
CLY 360 D21 21	21mm	180mm	435g

(Other lengths on request)

Complies with standard : ISO 691, ISO 2236, ISO 1711-1
