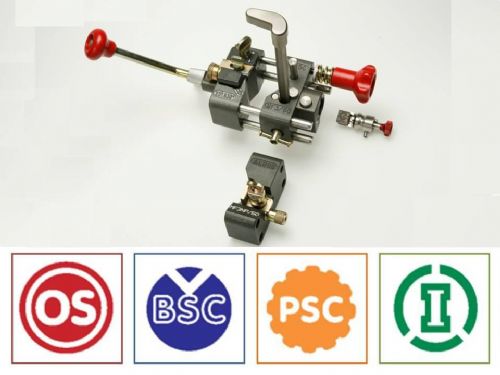

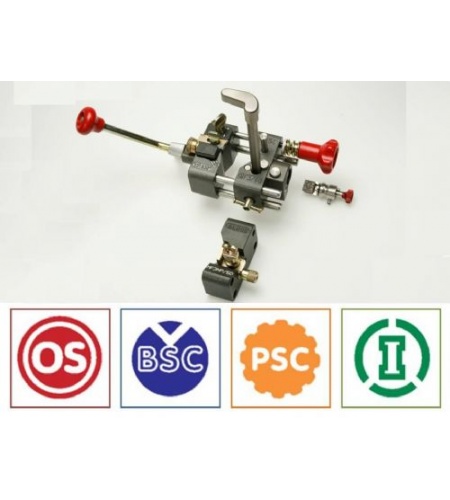

The M41 range are quad function stripping tools that can be used to remove a PE, PVC or PR Outer Sheath, Peelable Semi-Conductor, Bonded Semi-Conductor and Insulation. The tools have an adjustable lockable blade to ensure underlying layers are not damaged as the Outer Sheath and Insulation are cut in a helicoidal manner.
To strip Peelable Semi-Conductor, an adjustable blade insert is fitted which scores the Peelable Semi-Conductor helicoidally to allow easy manual removal. When used to strip Bonded Semi-Conductor, the blade cut depth can be precisely set to avoid damage to underlying insulation. The cut length can be set via an adjustable stop which also ensures a neat, straight finish. The tools are very robust with a full range of spare parts available.
Part No. |
Diameter |
Length |
Weight |
CLY 370 M41 1640 |
16-40mm |
150 x 100 x 80mm |
1.24kg |
CLY 370 M41 1658 |
16-58mm |
170 x 120 x 90mm |
1.40kg |
