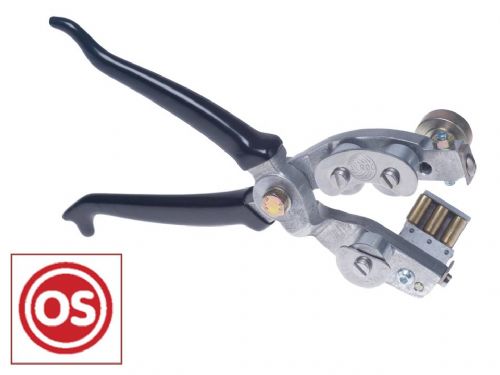

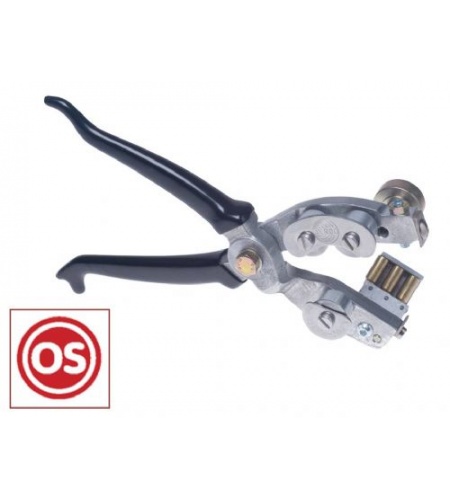

These pliers remove PE, PVC or PR Outer Sheaths similar to the standard OS plier range but differ in that instead of a single longitudinal cut guide roller, they have a guide mechanism consisting of 3 rollers in a V formation to guide the blade better when stripping wrapped helical cables. Instead of a single preset depth longitudinal cutting blade, the pliers can be ordered with a special rotating head which can be rotated to quickly change the longitudinal cut depth between 1.2, 1.6 and 1.8mm.
Part No. |
Long Blade |
Cable Diameter |
Weight |
Dimensions |
CLY 370 OS24 |
Preset |
10-30mm |
550g |
260 x 90 x 68mm |
CLY 370 OS27 |
Adjust |
10-30mm |
580g |
260 x 90 x 68mm |
The radial cut depth should be 0.2 - 0.5mm less than the nominal jacket wall thickness.
