Designed to quickly and easily install steel or wire winch bond into pre-laid PVC duct, the ATCC is quickly revolutionising the cable pulling industry. The ATCC takes compressed air and uses it to effectively push the Duct Bird down the pre-laid duct. The Duct Bird having already been attached to the winch bond simply pulls it down the duct. In a recent demonstration it has been proven to pull 500m of 11mm wire winch bond in just 7 minutes.
When the Duct Bird exits the duct upon completion of the "pull" the effective vacuum is broken and the pull ceases automatically without any risk of injury to operatives or passers by. The ATCC does away with the three-stage rodding process which up until now has effectively been the only method available for the placement of the winch bond. The ATCC as such allows winching to commence almost immediately upon arrival on site, as opposed to the usual several hours wait for the rodding process to be completed.

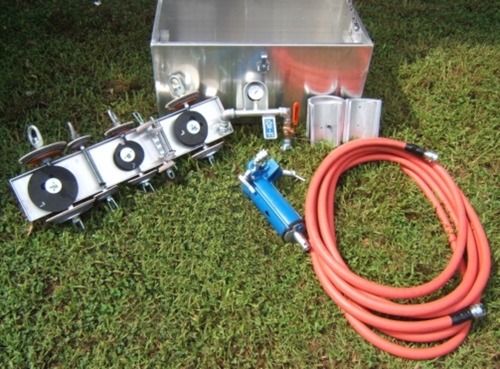

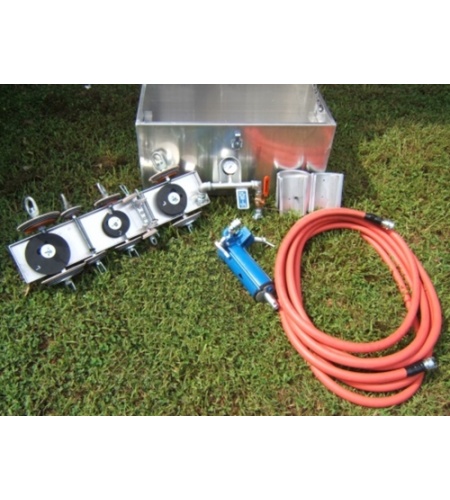

The bond blower is available as two kits - one for duct internal dimaters 4" to 6", and the other for duct internal diameters 3" to 6". Both kits weigh just over 30kg and are supplied in a stainless steel kit box complete with blower head, air hose assembly and duct birds.
